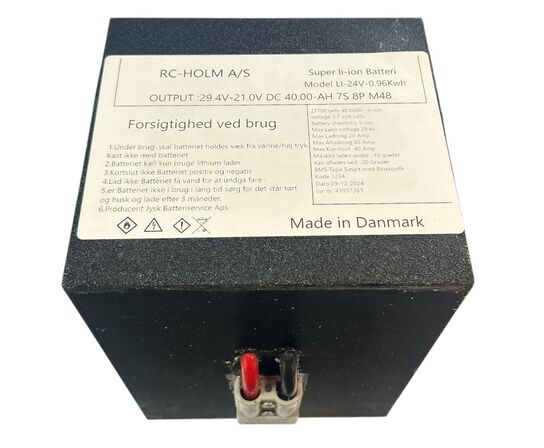

Lithium batteri 24V 40 AH - 80A - Hård 3D plast.

Kraftigt lithium batteri, der kan serie kobles til 48V ved køb af 2 stk. Ellers parralel kobles med det antal man har lyst til. Det har derudover Canbus PCB, der sikre overvågning og man kan aflæse batteriet, derudover kan en batteri indikator tilkobles canbus ledningen, og give en præcis batteri V status. Det er bygget op af 182650 celler af NMC. Voltage 24V (nominal) Capacity 39,6 Ah Cell Configuration 18P7S Cell Type 18650 / 2200 mAh BMS Integrated Chemistry Lithium-NMC Cycle Life >1500 cycles (@80% DoD, Vmax-charge = 28.8V) Self-Discharge <5% / month Dimensions 163 x 153 x 212 mm Weight 8.2 Kg Casing Stainless steel Enclosure Splash proof (IP54) Connector Anderson type (50A) Communication Connector DE-9 (P2: CAN-L; P7: CAN-H; P4: Shared GND; P8: Analog +) Discharge/Charge temperature range -10°C - +50°C / 0°C - +50°C Charge ending voltage 29.2±0.1 V (Recommended Vcharge-cut-off = 28.8V)) Discharge ending voltage 19.6±0.1 V (Recommended Vdischarge-cut-off = 21V) Standard cont. charging current 10A Max. cont. charging current 50A (Recommended Imax = 20A) Standard cont. discharge current 30A Max. cont. discharge current 50A Peak current 120A(<1S) Short Circuit Protection 283A (max 200μs) Current consumption <2 (mA) Analog SoC Output (0-5V) (<2mA)
